Mold & Product Surface Temperature Control System

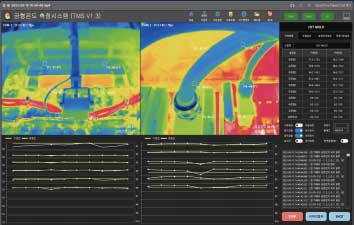

Overview
The Mold/Product Surface Temperature Control System is an advanced infrared (thermal imaging) solution designed to precisely measure surface temperatures without being affected by external environmental factors. It revolutionizes modern manufacturing by providing highly accurate, non-contact thermal data.
Advantage
- Comprehensive temperature monitoring across the entire mold surface
- Flexible installation on injection molding machines or robot systems
- Automatic alarm notifications when exceeding set temperature thresholds
- Big data–based temperature tracking enables mold life cycle analysis
- More cost-effective than embedded sensor-based systems
Function
-

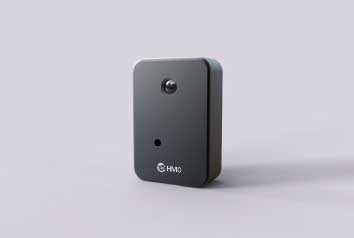

Infrared Camera Measurement System
-

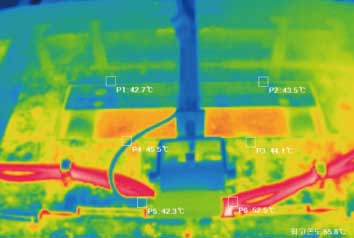

User-defined Surface Temperature Measurement
-

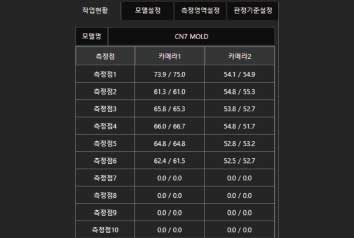

Defect Record Management
Technology Improvement

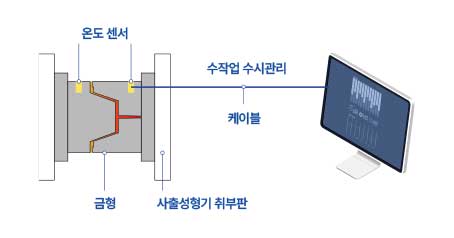

Conventional Technology
Indirect temperature control by installing sensors inside the mold
- Measured values differ from the actual surface temperature, and sensor placement limits mold design freedom
- Sensors often unused during mass production despite installation during mold manufacturing
- Repetitive drilling and sensor installation increase production cost
Data Operation
- Manual monitoring and management by operators

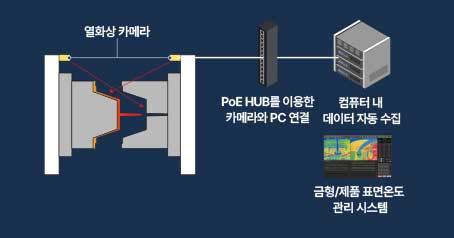

Developed Technology
Direct surface temperature monitoring using thermal imaging cameras
- Accurate surface temperature measurement with real-time visual analysis
- No need for internal drilling or sensor installation, reducing cost and complexity
- Applicable across multiple mold types and manufacturing lines
Data Operation
- Automated data collection and AI-based thermal trend monitoring
